| Unit | US Standard |
|---|---|
| Series | VB3 |
| IM | Inch |
| Work Surface | 3 X 3 |
| Travel | 2" |
| US Travel Filter | 0 to 2" |
| Product Type | BALL BEARING |
| Drive | PLAIN |
| Actuator | PLAIN |
| PosiLock | NO |
| Capacity | 58 lbs |
| US Capacity Filter | 56 to 110 lbs |
| M1 | 32.28 |
| M2 | 26.6 |
| M3 | 28.18 |
| Accuracy | 0.00004" |
| Repeatability | 0.00002 |
| CofFriction | 0.002 |

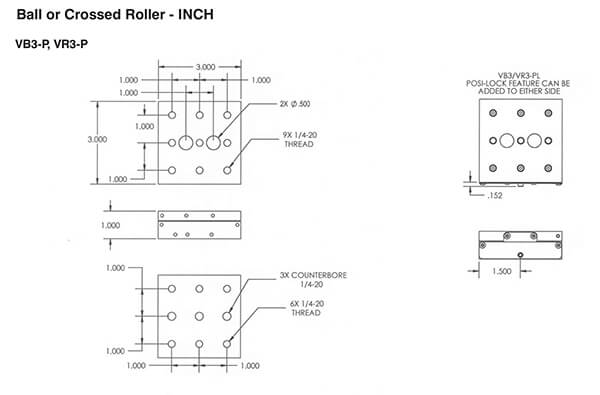

Dimension Drawing
