| capacityxy | |
|---|---|
| Unit | US Standard |
| Series | R3200 |
| Travel | 4.00" |
| IM | Inch |
| US Travel Filter | 2.01 to 4" |
| Capacity | 85 lbs |
| US Capacity Filter | 56 to 110 lbs |
| Accuracy | 0.0001" |
| Product Type | Crossed Roller |
| M1 | 178.3" |
| M2 | 101.55" |
| M3 | 106.62" |
| C | 4.625" |
| D | 4.125" |
| M | 4.625" |
| CHole | 2.00" DIA |
| CBORE | 10 – 32 |
| Thread | 10 – 32 |
| Holes | 10 |
| Hx | .91" |
| Hy | 1.82" |
| SLOT | 2.00"x4.00" |
| Work Surface | 5.12 X 5.12 |
| Through Hole | 10 |
| Axis | (XY) Double Axis |
| Option M Price | 0 |
| Option LM | 0 |
| Option LM Price | 0 |
| Option PL | 1 |
| Option PL Price | 100 |
| Orientation | None (slide only) |

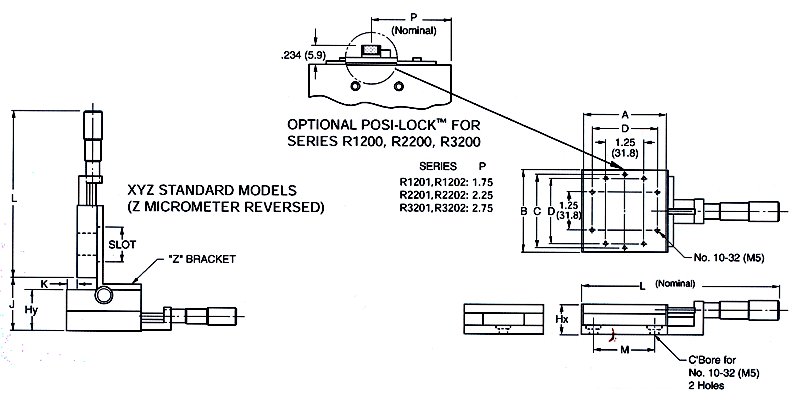

Dimension Drawing
