| Unit | US Standard |
|---|---|
| Series | C-AC |
| Travel | 1" |
| US Travel Filter | 0 to 2" |
| Capacity | 1.5 lbs |
| US Capacity Filter | 0 to 55 lbs |
| Weight | 0.15 lbs |
| A | 1.250" |
| B | 0.230" |
| C | 0.380" |
| D | 0.875" |
| E | 0.156" |
| F | 0.135" |
| G | 0.156" |
| H | 0.875" |
| Carriage Holes | 2-56 UNC-2B Thread |
| Hole (d) | 2-56 UNC |
| Counter Bore | N/A |
| Accuracy | 0.0005" |
| Product Type | Ball Slide |
| Finish | Clear-Other |
| M1 | 0.124 |
| M2 | 0.324 |
| M3 | 0.34 |

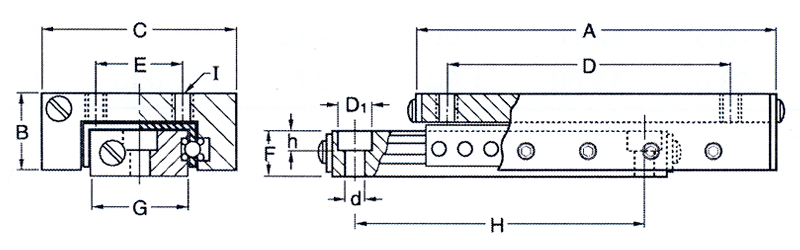

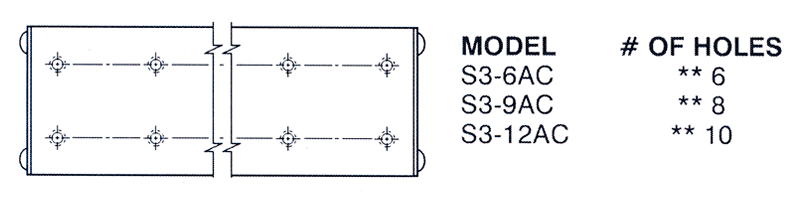

Dimension Drawing
