| Unit | Metric |
|---|---|
| Series | BSG14W |
| Travel | 65.5 mm |
| Metric Travel Filter | 0 to 200 mm |
| Capacity | 300 kg |
| Metric Capacity Filter | 0 to 500 kg |
| IM | Metric |
| Accuracy | 3 mm |
| Product Type | Ball Slide |
| M1 | 460.1 |
| M2 | 329.9 |
| M3 | 190.9 |
| L | 110 mm (4.33") |
| H | 14 mm (0.551") |
| B | 40 mm (1.575") |
| L2 | 44.5 mm (1.752") |
| L1 | 40.7 mm (1.602") |
| W | 6 mm (0.236") |
| P1 | 28 mm (1.102") |
| P2 | 15 mm (0.591") |
| S1 | M3 |
| small_e1 | 3 mm (0.118") |
| L3 | 33.5 mm (1.319") |
| small_b | 11 mm (0.433") |
| Dynamic C | 24 mm (0.945") |
| Static Co | 440 mm (970") |
| P | 40 mm (1.575") |
| H1 | 8 mm (0.315") |
| C | 24 mm (0.945") |
| B1 | 12 mm (0.472") |
| W1 | 8 mm (0.315") |
| small_dgh | 4.5 x 8 x 4.5 (.177 x .315 x .177) |
| N | 15 mm (0.591") |
| Weight Guide Rail | 1.4 kg (0.941lb) |
| Max Length | 1900 mm (74.8x") |
| Holes M | 3 |

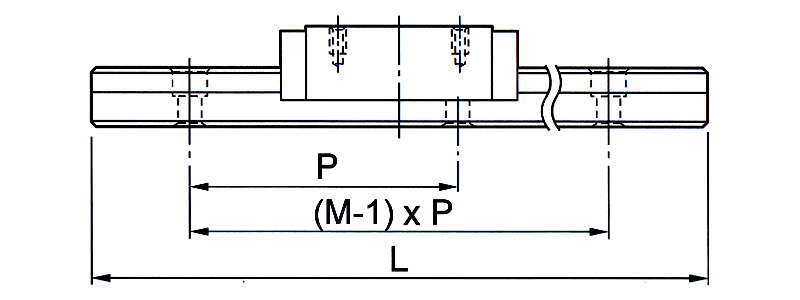

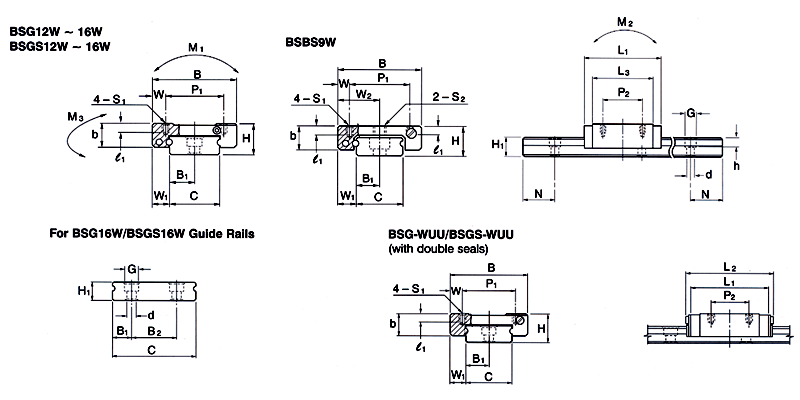

Dimension Drawing
